Mazak machining centre and profiles up to 8 m in a single set-up – in Arnsberg
Evotec is an owner-managed metalworking company in Arnsberg – founded in 2000 and now in its second generation. Milling takes place in our own plant on two CNC machines: parts from plate, block and pre-cut blanks on the Mazak VCN510C-II vertical machining centre, and aluminium profiles and long parts up to 8 m in a single set-up on the elumatec SBZ 150, a 5-axis profile machining centre.
Cutting to size, stamping and forming, tube processing, welding, powder coating and assembly are all under one roof. For these operations, your part does not have to travel between suppliers – you have one contact person from quotation to delivery.
Prismatic parts to your drawing – samples, one-off parts and production runs by arrangement.
Contours, pockets, face-milled surfaces and hole patterns on parts from plate, block or pre-cut blanks – milled on the Mazak VCN510C-II.
Aluminium profiles and long parts in a single set-up – machined from several sides and at freely programmable angles, without re-clamping the profile.
Holes and threads produced directly on the machining centres; on tubes and profiles, also flow drilling with thread forming up to M10.
Before machining, we saw profiles, tubes and bars to length ourselves – straight or mitred. See Contract Sawing for details.
Powder coating on our own Eisenmann line, plus welding and assembly in the same plant.
Initial sample inspection report by arrangement, documented processes and traceability.
Two machines, two strengths: block parts on the machining centre, long profiles on the profile machining centre.
The vertical machining centre from Yamazaki Mazak is designed for prismatic parts from plate, block and pre-cut blanks. The machine is installed at our plant in Arnsberg (Zur Alten Ruhr 4a).
Thin plates, sheets and flat pre-cut blanks are secured across their full surface on the Mazak's vacuum table – with no clamps in the tool path. This lets us mill the outer contour, cut-outs and pockets in a single set-up, and clamping distortion on thin parts stays low. Holding tabs keep small parts attached to the one-piece plate skeleton until milling is complete.
On the elumatec SBZ 150, a 5-axis profile machining centre, we machine aluminium profiles and long parts up to 8 m in a single set-up – from several sides and at freely programmable angles. Because the profile is not re-clamped, hole patterns and milled cut-outs stay aligned with one another. A saw blade in the tool changer cuts the parts to length in the same set-up.
Our focus is aluminium – as plate, block or extruded profile. We check your drawing to see whether your part can also be milled from steel, stainless steel, brass or copper. Please state the material and temper (for example EN AW-6082 T6) and the quantity in your enquiry.
One dedicated contact person for every step.
Send Your Drawing
Feasibility & Material
Prompt, No Obligation
Mazak or SBZ 150
Initial Samples on Request
Just in Time on Request
Our contact form lets you upload up to 10 files with a maximum of 20 MB each and 40 MB in total – several files are best sent as a ZIP. Accepted formats are PDF, DXF, DWG, STEP, IGES, JPG, PNG, ZIP and RAR.
Or email us at anfragen@evotec-gmbh.de.

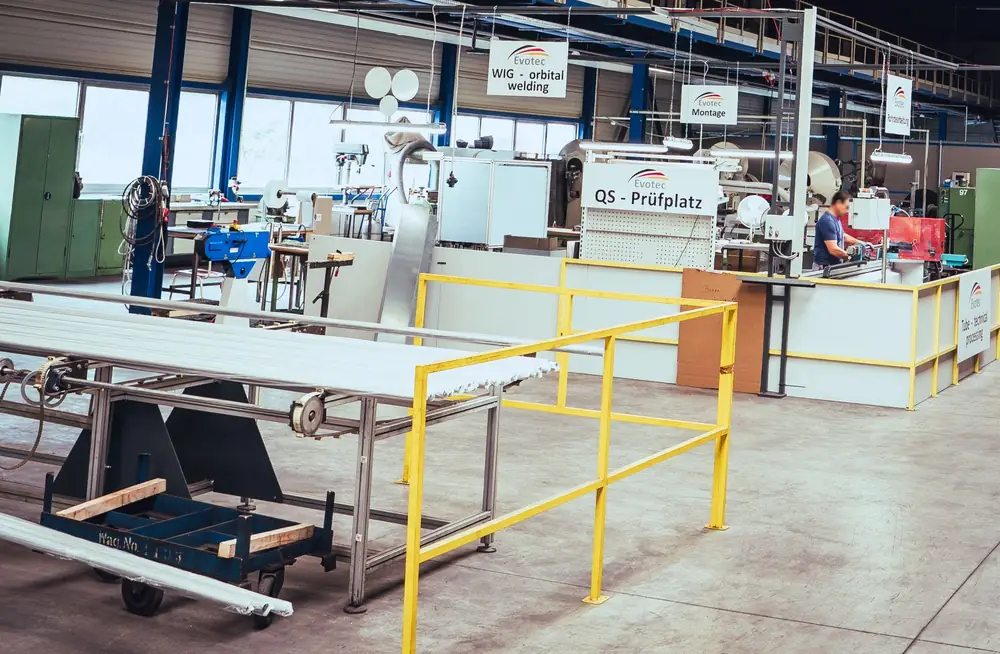

Evotec GmbH is certified to DIN EN ISO 9001:2015 (TÜV NORD CERT). The scope of certification covers stamped and formed parts, welded assemblies and tube processing; CNC milling is not currently included.
Nevertheless, our way of working applies here too: we check every drawing before quoting, document every order so that it is traceable, and agree with you before production starts which dimensions will be inspected and how. We prepare an initial sample inspection report by arrangement.
More about quality assurance
From cutting to the finished assembly – sawing, milling, coating and assembly at our plant in Arnsberg.
Send us your drawings or samples. We'll provide you with a no-obligation quote promptly.
