Powder Coating

Eisenmann line – over 12,000 m² of production floor space

Eisenmann Powder Coating Line

In our Eisenmann powder coating line, plastic particles based on polyester resin or epoxy resin are applied to the workpieces by electrostatic charging and then cured at approx. 180°C. The result: a solvent-free, environmentally friendly and extremely durable surface.

  • UV-resistant, impact-, scratch- and abrasion-resistant
  • Solvent-free and environmentally friendly
  • Chromate-free multi-zone pre-treatment
  • Corrosion protection up to category C5-I/M
  • Manual booth for quick color changes
  • All RAL and NCS colors available
Powder Coating Eisenmann Line Evotec GmbH

Technical Data

Max. dimensions

3,000 × 800 × 2,000 mm

Max. weight

up to 150 kg per part

Curing temperature

approx. 180°C

Materials

Steel, galvanized steel, aluminum, stainless steel

Colors

All RAL and NCS colors

Corrosion protection

up to category C5-I/M

Powder Coating in Action

Insights into Our Powder Coating

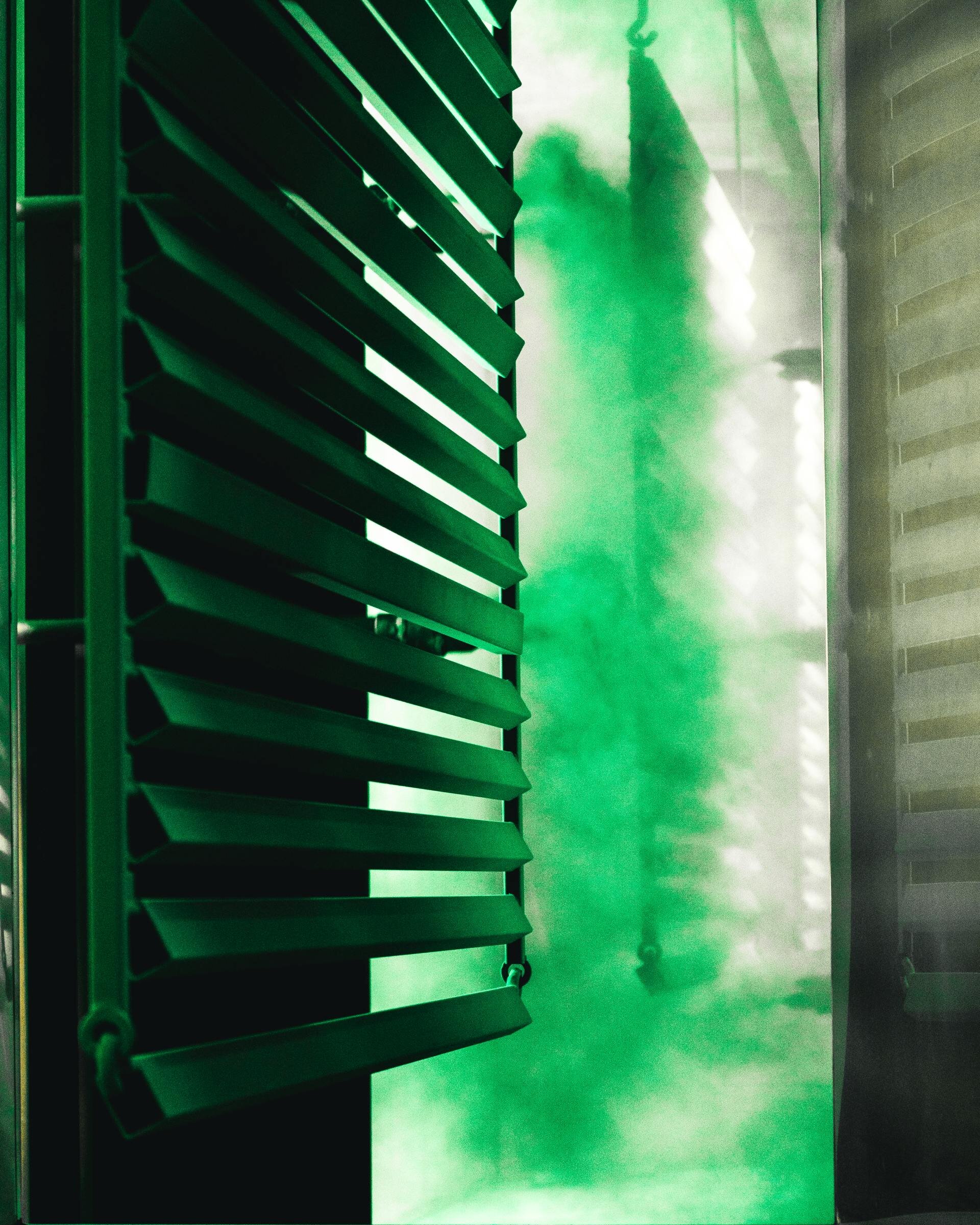

Powder Coating Line Eisenmann Evotec GmbHPowder Coating Line

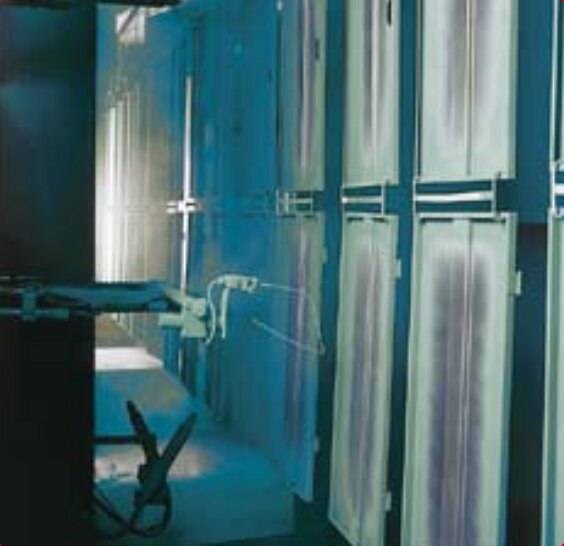

Powder Coating Detail View Evotec GmbHCoating Booth

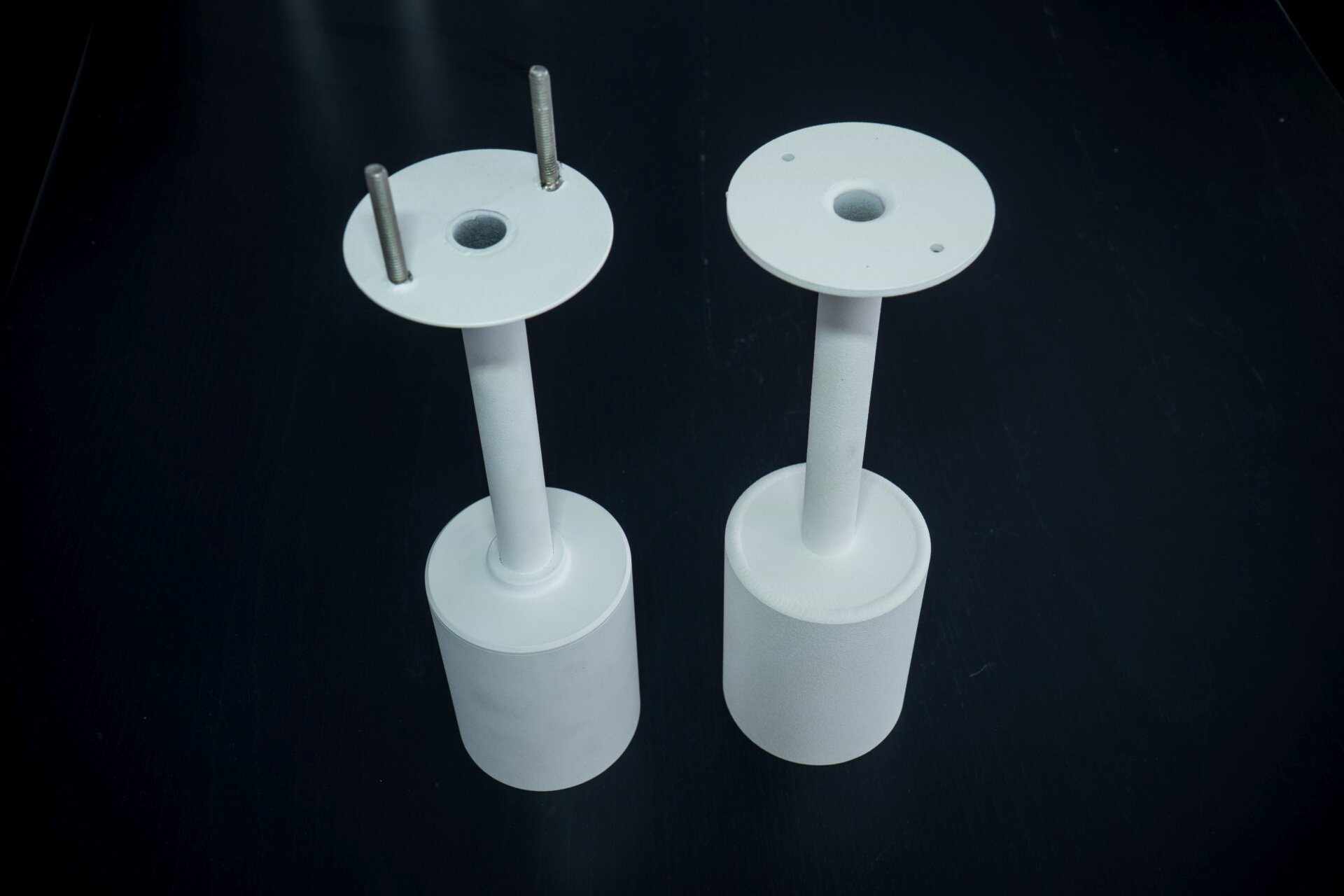

Powder Coating Production Evotec GmbH ArnsbergPowder Coating

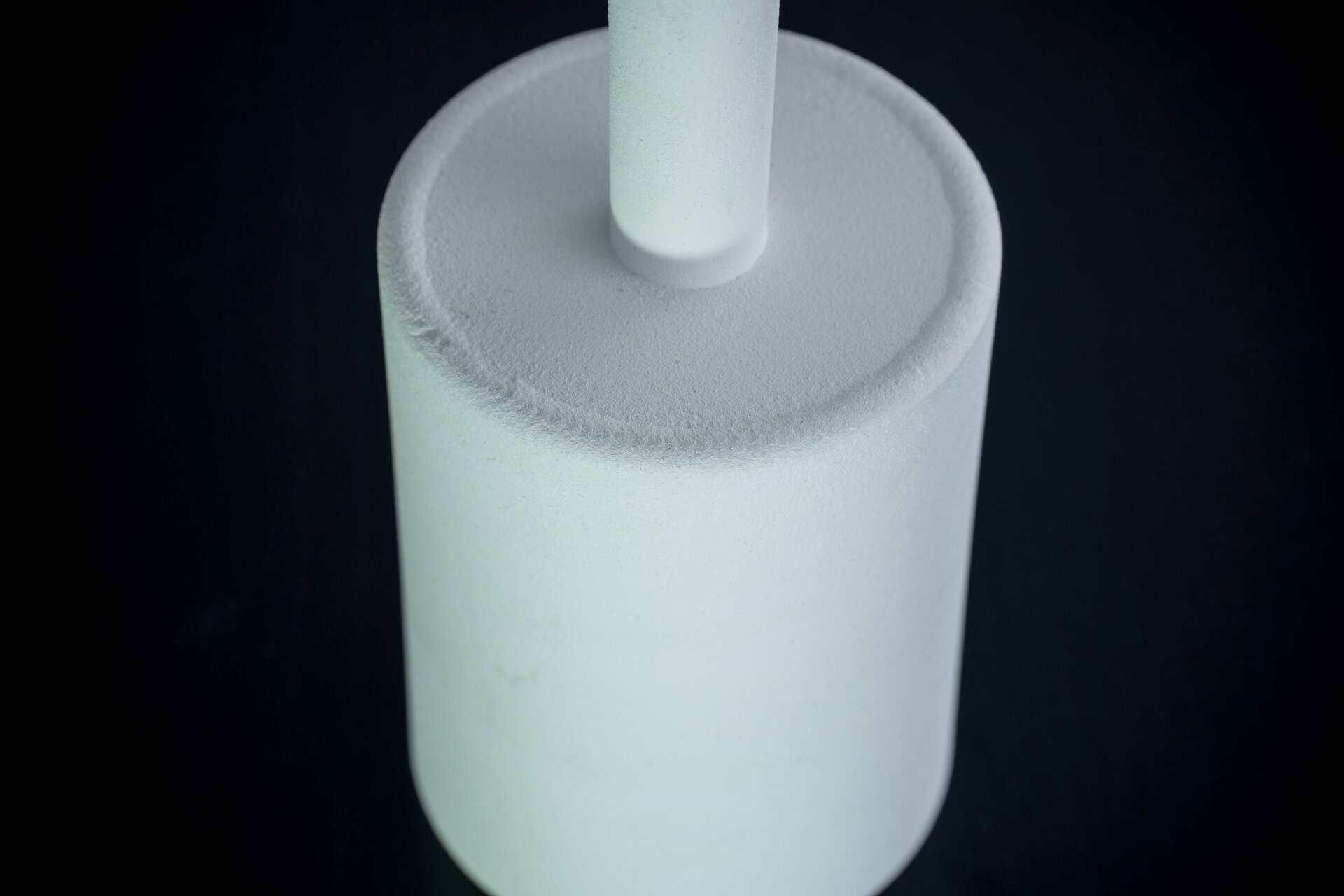

Powder-Coated Metal Parts Evotec GmbHCoated Parts

Your Project – Our Expertise

Send us your drawings or samples. We will promptly prepare a no-obligation quote for you.
